Stainless Steel Elbows Thread Ends
These elbows are used to change the direction or angle of pipes. They are corrosion-resistant and lead-free.
Additional information
| Material | SS304/SS316 |
|---|---|
| Pressure | 150LB |
| Size | 1/8" to 4" |
| Connection | Thread Ends |
| Standard | ISO4144 |
Product Details
Elbows in stainless steel 304/316 material are one of the professional products in the Leadtek-Welflow Brand. These elbows are used to change the direction or angle of pipes. They are corrosion-resistant and lead-free.
- Size: 1/8″ to 4″
- Fabrication: Wax Lost Investment Casting
- Material: 304/316, CF8/CF8M
- Thread: BS21(BSPT & BSPP), ANSI/ASME B1.20.1(NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT)
- Surface: Pickling and Peeling
- Model: Elbow
- Application: Suitable for water, oil, and gas.
- Sample: Free samples are available

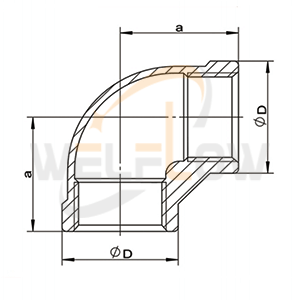

Dimension List
| Size | DN | ΦD | a |
|---|---|---|---|
| 1/8″ | 6 | 14.5 | 17 |
| 1/4″ | 8 | 18 | 19 |
| 3/8″ | 10 | 21.5 | 23 |
| 1/2″ | 15 | 26.5 | 27 |
| 3/4″ | 20 | 32 | 32 |
| 1″ | 25 | 39.5 | 37 |
| 11/4″ | 32 | 48.5 | 43 |
| 11/2″ | 40 | 55 | 48 |
| 2″ | 50 | 67 | 56 |
| 21/2″ | 65 | 84 | 69 |
| 3″ | 80 | 98 | 78 |
| 4″ | 100 | 124.5 | 94 |
Related Products of Elbows

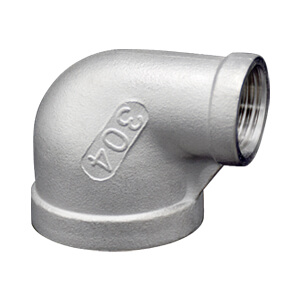

90 Degree Reducing Elbow

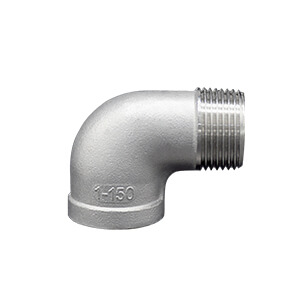

90 Degree Street Elbow MF

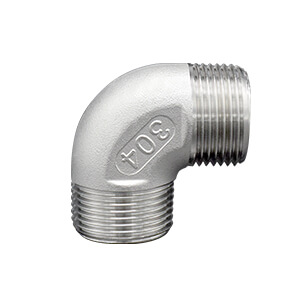

90 Degree Elbow MM

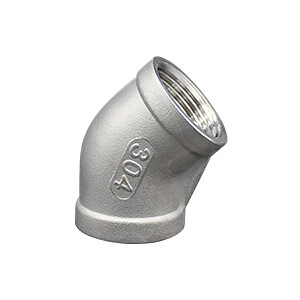

45 Degree Elbow FF

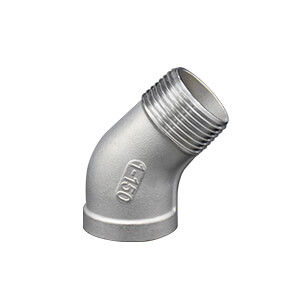

45 Degree Street Elbow MF
