Stainless Steel A Type Camlock Coupling Fittings
Additional information
| Item NO | LT-21A |
|---|---|
| Material | SS304/SS316 |
| Pressure | 1/2" 150PSI, 3/4" to 2" 250PSI, 21/2" 225PSI, 3" 200PSI, 4" 100PSI, 5“ & 6” 100PSI |
| Size | 1/2" to 6" (DN15-DN150) |
Product Details
Camlock Fitting is also named Cam and Groove Fittings or Camlock Coupling. Camlock Hose Fittings is used in various industries and applications. Camlock Fittings, including Camlock Quick Connect, are easy to connect with pipes, tubing, or hoses. Typically with Male Adapter Ends, Female Coupler Ends, and Hose Tails.

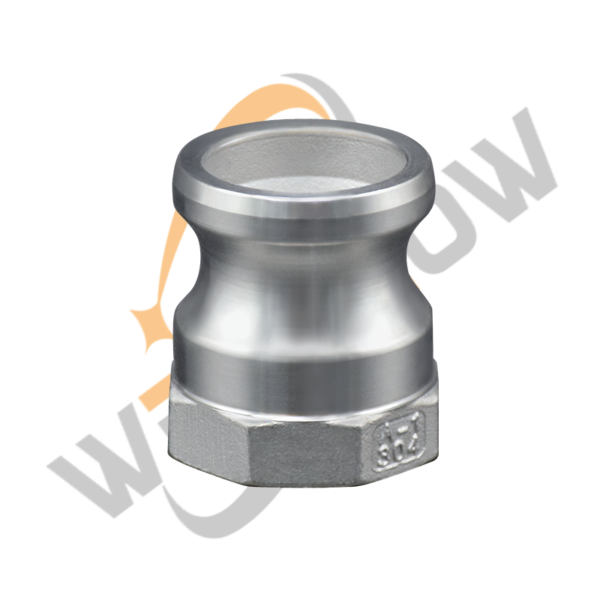

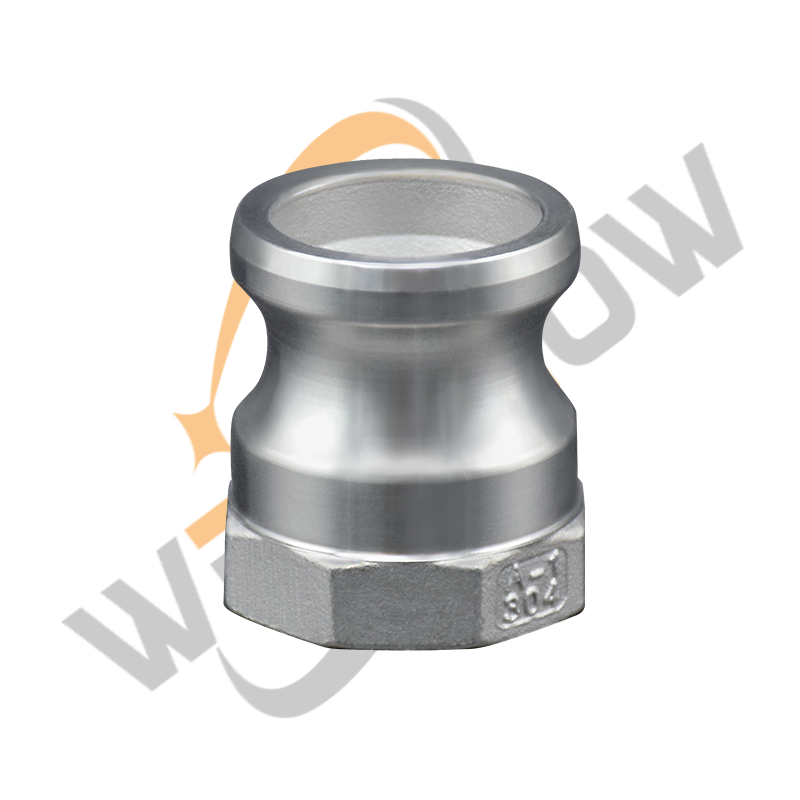

Type A Camlock Adapter- Male grooved adapter + Female Thread
Usually cooperates with Type B, Type C, Type D, or Type DC couplers to economically deliver water, slurry, petroleum, and fuels.
- Size: 1/2″to 4″(DN15-DN100)
- Max Pressure: 1/2″(150PSI), 3/4″to 2″(250PSI), 2-1/2″(225PSI), 3″(200PSI), 4″(100PSI)
- End connection: Male Adaptor & Female Thread-BS21(BSPT & BSPP), ANSI B2.1(NPT)
- Investment Casting Body
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- OEM is acceptable and manufactures special requirements according to your drawings.
- Warning: Type A stainless steel Camlock coupling is NOT for use with compressed air, gases, or steam.
Camlock Coupling Operation Pressure
| Size | Working Pressure |
|---|---|
| 1/2″ | 150PSI |
| 3/4″ to 2″ | 250PSI |
| 21/2″ | 225PSI |
| 3″ | 200PSI |
| 4″ ,5″ & 6″ | 100PSI |
Dimension List
| Size | DN | D | D1 | H | H1 |
|---|---|---|---|---|---|
| 1/2″ | 15 | 24.0 | 17.0 | 35.5 | 27.5 |
| 3/4″ | 20 | 32.1 | 24.1 | 37.5 | 28.5 |
| 1″ | 25 | 36.7 | 27.7 | 43.0 | 33.0 |
| 11/4″ | 32 | 45.5 | 35.5 | 50.0 | 39.0 |
| 11/2″ | 40 | 53.4 | 42.4 | 52.0 | 40.0 |
| 2″ | 50 | 63.0 | 51.0 | 58.0 | 45.0 |
| 21/2″ | 65 | 75.8 | 62.8 | 75.0 | 61.0 |
| 3″ | 80 | 91.5 | 77.5 | 66.0 | 51.0 |
| 4″ | 100 | 119.5 | 104.4 | 68.5 | 52.5 |
