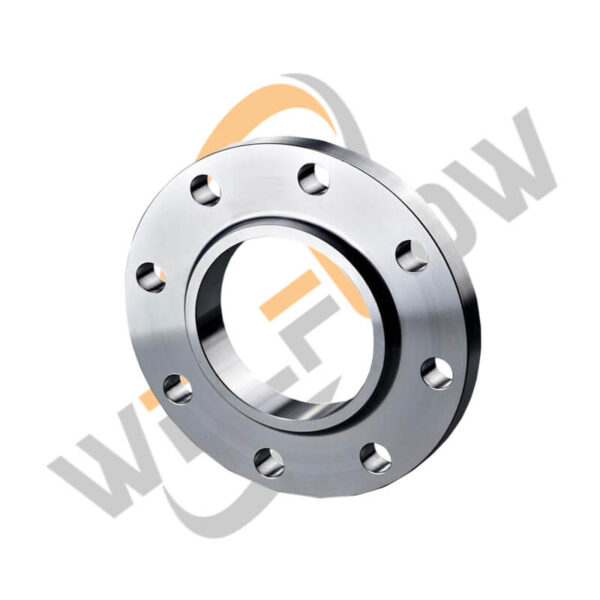

ANSI B16.5 Slip On Flange

Slip-on flanges are easy to use in fabricated applications.

Additional information

Item NO	LT-F01A
Material	Material of Duplex Stainless Steel: 9041L 2205, 2507, 254SMO, etc, SS304, SS316, SS304L, SS316L, SS321, SS310 ,1.4401, 1.4403
Pressure	150LB
Size	1/2" to 24"

This flange is slipped over the pipe and then fillet welded.

Slip-on flanges are easy to use in fabricated applications.

Size	D	b	g	J	h	K	Holes	I
1/2″	88.9	11.1	34.9	22.3	15.9	60.3	4	15.9
3/4″	98.4	12.7	42.9	27.7	15.9	69.8	4	15.9
1″	107.9	14.3	50.8	34.5	17.5	79.4	4	15.9
11/4″	117.5	15.9	63.5	43.2	20.6	88.9	4	15.9
11/2″	127	17.5	73	49.5	22.2	98.4	4	15.9
2″	152.4	19	92.1	62	25.4	120.6	4	19
21/2″	177.8	22.2	104.8	74.7	28.6	139.7	4	19
3″	190.5	23.8	127	90.7	30.2	152.4	4	19
31/2″	215.9	23.8	139.7	103.4	31.7	177.8	8	19
4″	228.6	23.8	157.2	116.1	33.3	190.5	8	19
5″	254	23.8	185.7	143.8	36.5	215.9	8	22.2
6″	279.4	25.4	215.9	170.7	39.7	241.3	8	22.2
8″	342.9	28.6	269.9	221.5	44.4	298.4	8	22.2
10″	406.4	30.2	323.8	276.3	49.2	361.9	12	25.4
12″	482.6	31.7	381	327.1	55.6	431.8	12	25.5
14″	533.4	34.9	412.7	359.1	57.1	476.2	12	28.6
16″	596.9	36.5	469.9	410.5	63.5	539.7	16	28.6
18″	635	39.7	533.4	461.8	68.3	577.8	16	31.7
20″	698.5	42.9	584.2	513.1	73	635	20	31.7
22″	749.3	46	641.2	564.4	79.4	692.1	20	34.9
24″	812.8	47.6	692.1	615.9	82.5	749.3	20	34.9
