2PC Full Bore Ball Valves with Lock Lever Handle

Categories , Tags , ,

This design ball valve consists of two separate pieces and one is the valve body, the other is a bonnet(cap). Handles’ sheath can be customized according to the customer’s requirements for free, such as the color, plus the customer’s logo, etc.

Additional information

Item NO

LT-52B
Size

1/4" to 4"
Type of Port

Full Bore
Pressure

1000WOG(PSI)
Material

SS304/SS316
Connection

Female Thread(BSPT,BSP,NPT etc)
Ask for A Quote

Product Details

This design ball valve consists of two separate pieces and one is the valve body, the other is a bonnet(cap).
Advantage:
1. The 2-piece ball valve is more resistant to high pressure than the identical quality ball valves.
2. When the valves leaks, it could be repaired by changing the sealing or packing.
Disadvantage: The valve needs to be removed from the pipeline and connections only in thread or flanges when replacing parts.

This data of 2PC Ball Valve is our middleweight. We both have heavier and lighter weights for different clients and market requirements.

Handles’ sheath can be customized according to the customer’s requirements for free, such as the color, plus the customer’s logo, etc.

  • Size: 1/4″ to 4″ (DN8 to DN100)
  • Max Pressure: 1000WOG
  • Full Bore
  • Material: CF8/CF8M(SS304/SS316)
  • End Connection: Female Thread-BS21(BSPT &BSP), ANSI B2.1 (NPT) etc.
  • Investment Casting Body
  • Blow-out Proof Stem
  • Operation: Lock Lever Handle
  • OEM is acceptable and manufacturers special requirements according to your drawings.

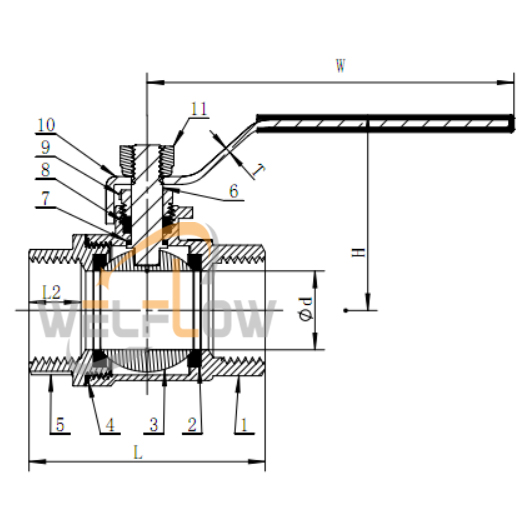

2PC Ball Valve Middle Type Full Bore
SizedLHW
1/4″10554691
3/8″12554691
1/2″155856105
3/4″206658110
1″257567114
11/4″328276125
11/2″3893.582155
2″5011092156
21/2″65139119212
3″80167133214
4″100202162312
2PC Ball Valve Middle Type Full Bore
NOParts NameMaterial
1BodyCF8/CF8M
2SeatPTFE/RPTFE
3BallF304/F316
4GasketPTFE
5CapCF8/CF8M
6StemSS304/SS316
7WasherPTFE
8PackingPTFE
9Gland NutSS304
10HandleSS201/SS304
11NutA2-70
