2PC Flanged Ball Valve with High Mounting Pad

Categories , Tags , , ,

2PC Flanged Ball Valve is used most widely in stainless steel flange ball valve areas.
The main components of the 2pc flanged ball valves are handle (Actuator), Body, Bonnet, Ball, Stem, Bolts, Seat, etc.

Additional information

Item NO

LT-72A
Size

1/2" to 6" (DN15-DN150)
Type of Port

Full Bore
Pressure

150LB
Material

SS304/SS316
Connection

Flanged Ends
Ask for A Quote

Product Details

2PC Flanged Ball Valve is used most widely in stainless steel flange ball valve areas.
The main components of the 2pc flanged ball valves are handle (Actuator), Body, Bonnet, Ball, Stem, Bolts, Seat, etc.

Body, Ball, and Stem: SS304/SS316/1.4401/1.4403

Bolts, Nuts, Spring Washer, etc.: Stainless Steel 304

Seat Packing: Imported Daikin PTFE (CNC Machined)/Normal PTFE/RPTFE

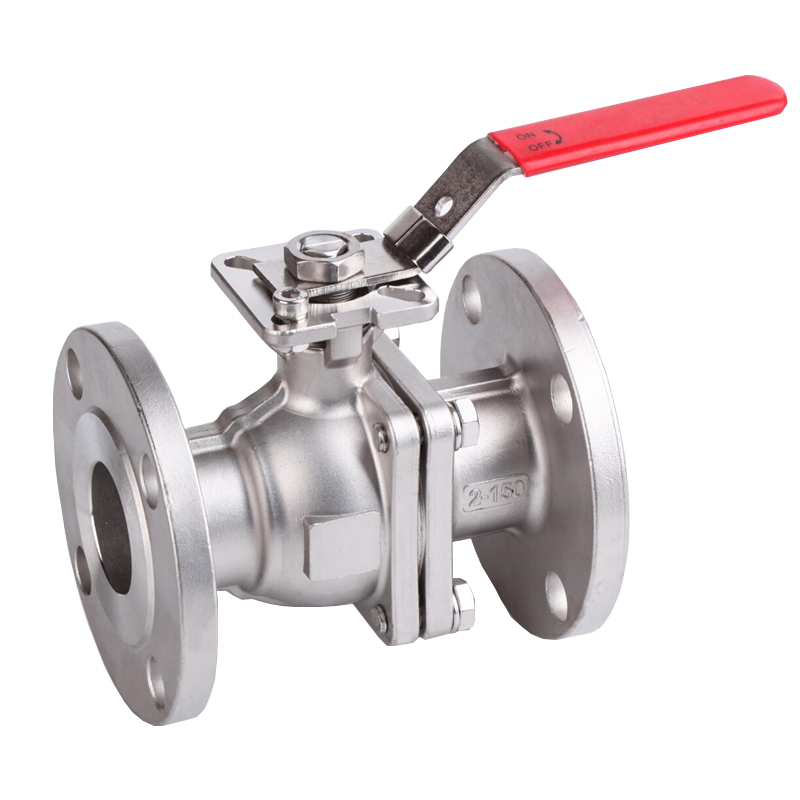

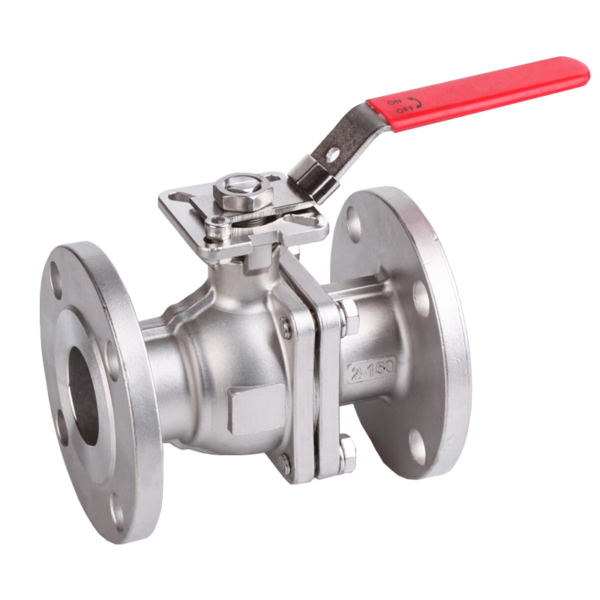

Handle: For our old design ISO5211 Pad, always with the lever handle with lock design (As photo shows)

  • Size: 1/2″ to 6″ (DN15-DN150)
  • Power: Manual Operated/Pneumatic Actuator/Electric Actuator
  • Casting Process: Investment Casting (Lost Wax)
  • Pressure Rating: 150LB
  • Design: API 608
  • Test & Inspect: API 598
  • Face to Face Dimension: ASME B16.10
  • Flange Dimension: ASME B16.5
  • Medium: Water, Gasoline, Fuels, Gas, etc.
Sizedd4KDN-ZCTLISO5211SHE
1/2″153460.3904-1629108F03/F04975125
3/4″204269.91004-1629.3117F03/F04980125
1″255079.41104-1629.8127F04/F051190155
11/4″326288.91154-16211.5140F04/F0511100155
11/2″387298.41254-16213165F05/F0714120185
2″5091120.71504-19214.5178F05/F0714130185
21/2″65103139.71784-19216190F07/F1017150260
3″80125152.41884-19217.8203F07/F1017160260
4″100155190.52288-19222.3229F07/F1019185300
5″125186215.92558-22222.3356F10/F1227242500
6″150215241.32808-22223.9394F10/F1227270600

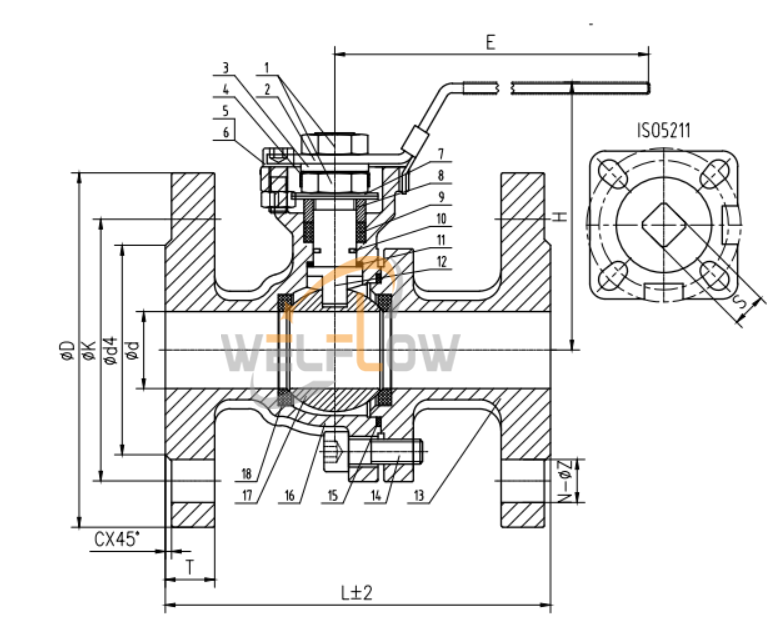

NOParts NameMaterialNOParts NameMaterial
1NutSS30411Thrust GasketPTFE
2HandleSS20112StemSS304/SS316
3WasherSS30413BonnetCF8/CF8M/WCB
4Anti Loosing BonnetSS30414Spring WasherSS304
5NutSS30415Hex Head ScrewSS304
6Hex ScrewsSS30416GasketPTFE
7Disc SpringSS30417BodyCF8/CF8M/WCB
8Gland NutSS30418BallSS304/SS316
9PackingSS30419SeatPTFE/RPTFE
10O-RingPTFE
