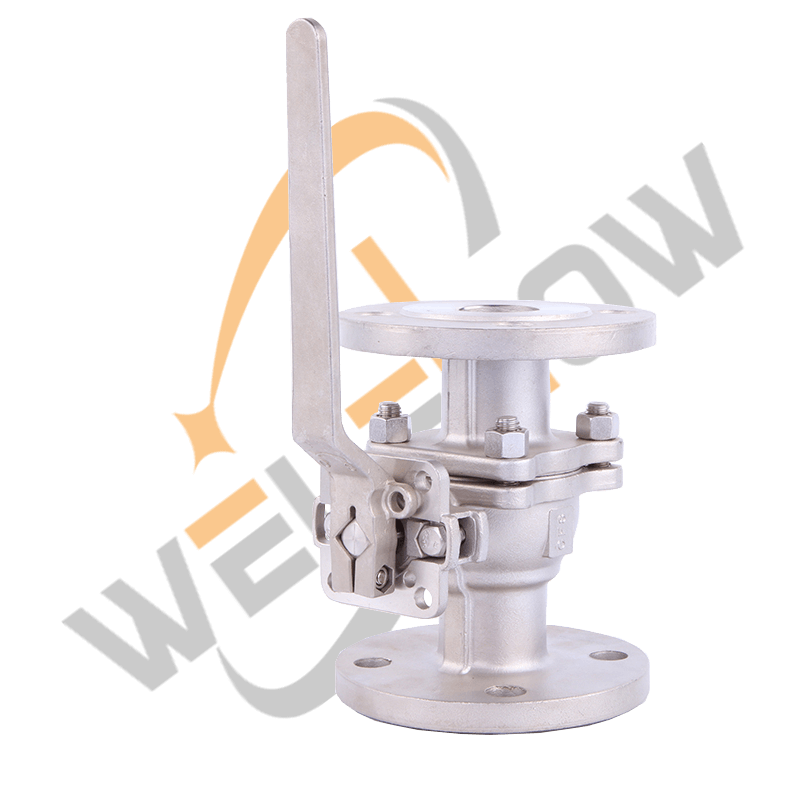

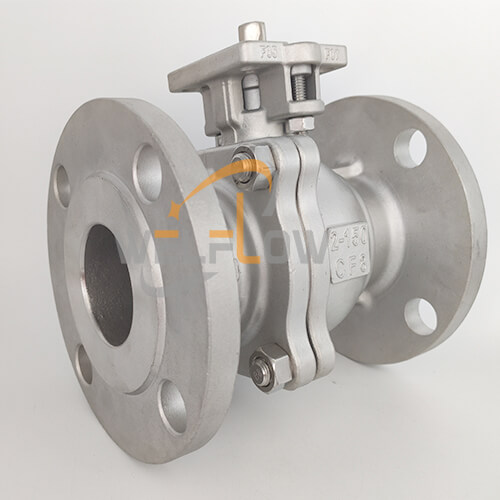

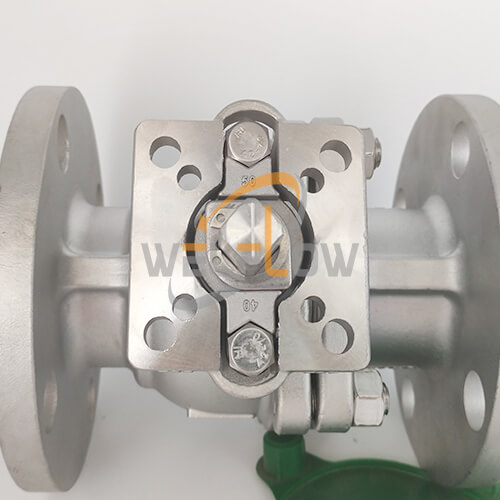

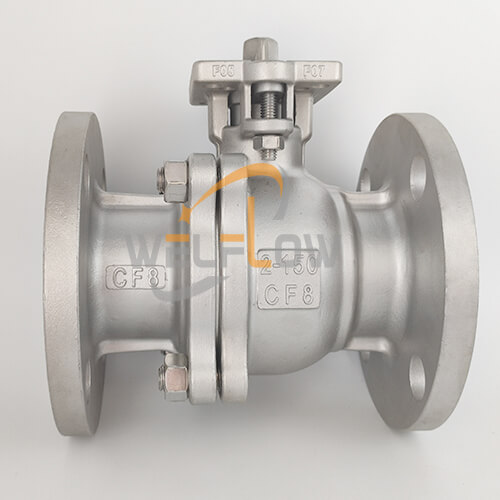

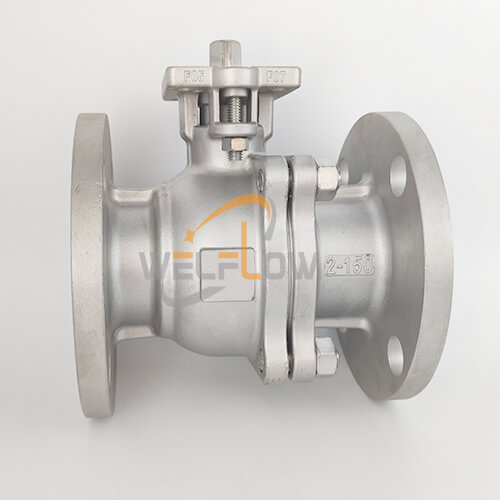

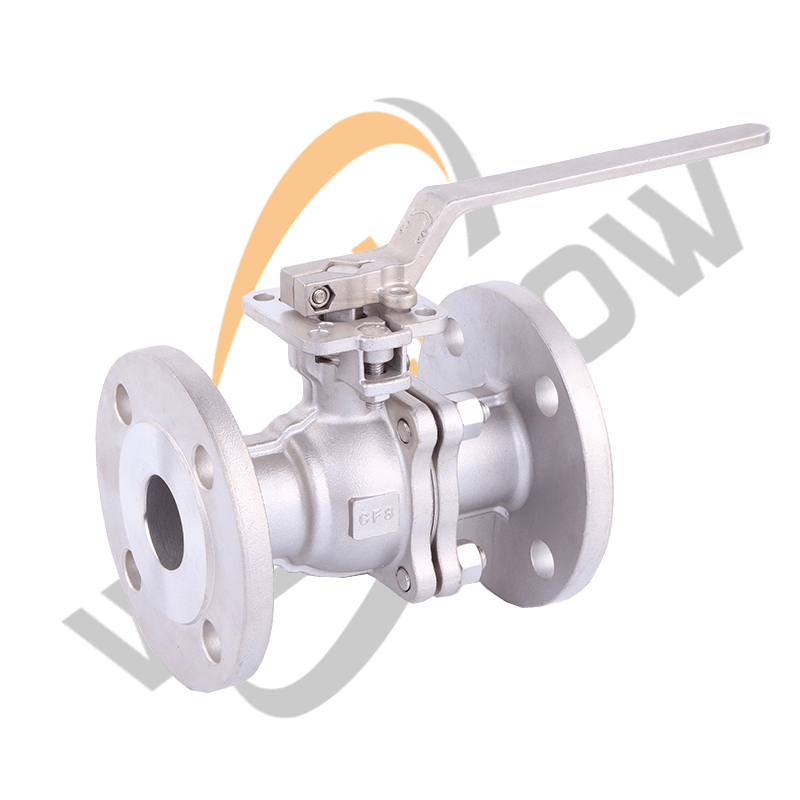

2PC Flanged Ball Valve with High Mounting ISO5211 Pad
2PC Flanged Ball Valve is used most widely in stainless steel flange ball valve areas.
The main components of the 2pc flanged ball valves are handle (Actuator), Body, Bonnet, Ball, Stem, Bolts, Seat, etc.
Additional information
| Item NO | LT-72A |
|---|---|
| Size | 1/2" to 8" (DN15-DN200) |
| Type of Port | Full Bore |
| Pressure | 150LB |
| Material | SS304/SS316 |
| Connection | Flanged Ends |
Product Details
2PC Flanged Ball Valve is used most widely in stainless steel flange ball valve areas.
The main components of the 2pc flanged ball valves are handle (Actuator), Body, Bonnet, Ball, Stem, Bolts, Seat, etc.
Body, Ball, and Stem: SS304/SS316/1.4401/1.4403
Bolts, Nuts, Spring Washer, etc.: Stainless Steel 304
Seat Packing: Imported Daikin PTFE (CNC Machined)/Normal PTFE/RPTFE

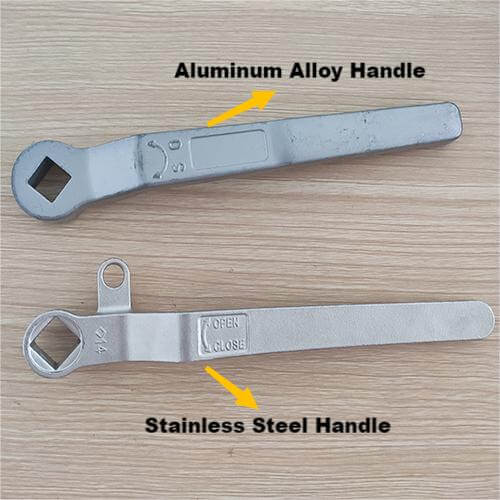

Handle: As the photo shows square hole stainless steel 304 handles or Aluminum alloy handle
- Size: 1/2″ to 8″ (DN15-DN200)
- Power: Manual Operated/Pneumatic Actuator/Electric Actuator
- Casting Process: Investment Casting (Lost Wax)
- Pressure Rating: 150LB
- Design: API 608
- Test & Inspect: API 598
- Face to Face Dimension: ASME B16.10
- Flange Dimension: ASME B16.5
- Medium: Water, Gasoline, Fuels, Gas, etc.
| Size | DN | L | D1 | D2 | D3 | N-d | T1 | T | KXK | A | B | R1 | R2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 15 | 108 | 34.9 | 60.3 | 90 | 4-16 | 2 | 10 | 9×9 | 50 | 36 | 3.5 | 3 |
| 3/4″ | 20 | 117 | 42.9 | 69.9 | 100 | 4-16 | 2 | 11 | 9×9 | 50 | 36 | 3.5 | 3 |
| 1″ | 25 | 127 | 50.8 | 79.4 | 110 | 4-16 | 2 | 12 | 11×11 | 50 | 42 | 3.5 | 3 |
| 11/4″ | 32 | 140 | 63.5 | 88.9 | 115 | 4-16 | 2 | 13 | 11×11 | 50 | 42 | 3.5 | 3 |
| 11/2″ | 38 | 165 | 73 | 98.4 | 125 | 4-16 | 2 | 14 | 14×14 | 70 | 50 | 4.5 | 3.5 |
| 2″ | 50 | 178 | 92 | 120.7 | 150 | 4-19 | 2 | 16 | 14×14 | 70 | 50 | 4.5 | 3.5 |
| 21/2″ | 65 | 190 | 105 | 139.7 | 178 | 4-19 | 2 | 18 | 17×17 | 102 | 70 | 5.5 | 4.5 |
| 3″ | 80 | 203 | 127 | 152.4 | 188 | 4-19 | 2 | 20 | 19×19 | 102 | 70 | 5.5 | 4.5 |
| 4″ | 100 | 229 | 157 | 190.5 | 228 | 8-19 | 2 | 24 | 19×19 | 102 | 70 | 5.5 | 4.5 |
| 5″ | 125 | 356 | 185 | 215.9 | 255 | 8-22 | 2 | 24 | 22×22 | 125 | 102 | 6.5 | 5.5 |
| 6″ | 150 | 394 | 216 | 241.3 | 280 | 8-22 | 2 | 26 | 27×27 | 125 | 102 | 6.5 | 5.5 |
| 8″ | 200 | 457 | 270 | 298.5 | 345 | 8-22 | 2 | 29 | 27×27 | 140 | 125 | 8.5 | 6.5 |
| NO | Parts Name | Material | NO | Parts Name | Material |
|---|---|---|---|---|---|
| 1 | Body | WCB/CF8/CF8M | 10 | Pressing Plate | SS304 |
| 2 | Bonnet | WCB/CF8/CF9M | 11 | Location Pin | SS304 |
| 3 | Ball | SS304/SS316 | 12 | SpringWasher | SS304 |
| 4 | Seat | PTFE/RPTFE | 13 | Handle | SS/Aluminum Alloy Handle |
| 5 | Stem | SS304/SS316 | 14 | SpringWasher | SS304 |
| 6 | O-Ring | VITON | 15 | Bolts | A2-70 |
| 7 | Packing | PTFE/RPTFE | 16 | Nut | A194 8 / A194 8M |
| 8 | Pressing Ring | SS304/SS316 | 17 | Bolts | A2-70 |
| 9 | Believille Washer | SS304 |
